Made to Measure
| |
| |
|
|
Double Wall Corrugated Board
|
|
|
| Double wall corrugated board has a similar construction to single
wall board but has two fluting mediums instead of one, and three liners instead
of two. This gives the board additional stacking strength and better puncture
resistance. Double wall can still be die-cut, as with single wall, but case dimensions
have to be larger to allow for the extra thickness in board.
The fluting size can be varied, depending on the application of the case. The
most common type of double wall board is ‘BC’ flute which is approximately
6.2mm thick, with the thinner fluting on the outside of the case to allow for
a better finish when printing. For an even better finish |
|
 |
we can give the outer liner a clay coating to give a glossy finish. When used
with ‘EB’ double wall and a silkscreen print process we can achieve
almost photo quality images.
Before ordering 'made to measure', why not check out our stock
cartons  |
|
Triple Wall Corrugated Board
|
[] |
Triple wall Corrugated, or Triple Wall as it is sometimes referred
as, is a heavy-duty board manufactured from three fluting mediums and four liners.
The strength of this board compared to its weight makes it an excellent material
for the manufacture of heavy-duty cases for export purposes. We sell triple wall
sheetboard from stock in sheet sizes of 2160 x 3500 for lining cases for export
and other uses where strength is important, but weight needs to be kept to a minimum.
|
|
|
| Before ordering 'made to measure', why not check
out our stock cartons |
| X-Ply corrugated board is unique in the way that the middle fluting
is set at 90 degrees to the inner and outer fluting. This plywood style of manufacture
means that it is very strong laterally as well as having great stacking strength.
To give an example of the strength of this board, we have a hazardous carton available
from stock with an internal size of 770mm x 570mm x 550mm which is licensed to
carry up to 200kg in weight! |
|
 |
Examples of packs produced by Mega-Pak Limited’s
design team
Channel 4 Book’s Stand
Examples of Packaging Produced By Mega-Pak Limited’s Design Team
We were approached by a company representing Channel 4 Books to design a point
of sale display stand for a range of gardening books. The stand had to be self
supporting, strong enough to take the weight of the books, easy to assemble and
to be of an attractive design without taking the eye away from the product. Our
solution, pictured on the left, included a small assembly instruction sheet produced
by our design team to allow easy assembly by the shop assistant’s. We finished
the display stand with a silkscreen printing process giving a simple yet high
quality print finish. |
|
 |
| |
|
|
| Super Max
Super-Max who have developed the world's first triple bladed disposable razor,
the Super-Max3, asked us to design a pack which would transport, display and dispense
their product. The pack also had to be strong, durable and attractive to the eye.
We chose to use an industry standard design with a modified front edge and an
internal fitting which allows us to use ‘e’ flute board to reduce the
weight of the pack, but keeping the overall structure strong. The ‘e’
flute also allowed us to use a lithographic laminating printing process to produce
a high quality printed finish meeting our customers brief in full. |
|
|
| |
|
|
Die-Cut
The die-cutting process is a very accurate way of producing a carton or fitting.
It allows us to stamp out an irregular shape from sheet board, much the same way
as a pastry cutter is used. A cutting forme is made at a one off charge to the
customer which will allow us to produce exactly the same shape, time and time
again. Cutting forme’s will vary in cost depending on the size and style
of the tool. Solid board, display board, corrugated and plastic can be cut using
this process.
Fittings
A number of inner fittings can be manufactured by either die cutting or scoring
directly off the corrugator. These fittings can be used to hold or partition products

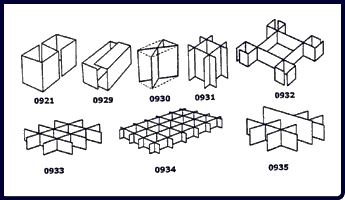

within a case. The following diagram shows some of the more common types of fittings.
We would be happy to advise on the best fitting suitable for your product to give
it the best protection it deserves.
|
|
|
| |
|
|

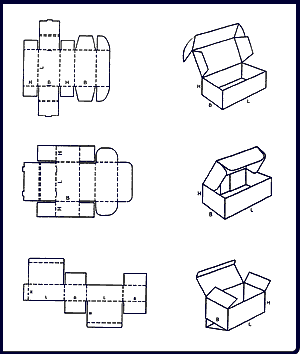

Examples of Common Die-Cut Cartons
The following are examples of Die-cut cartons.
All Die-cut cartons can be manufactured to your exact size and specification |
|
|
| |
|
|

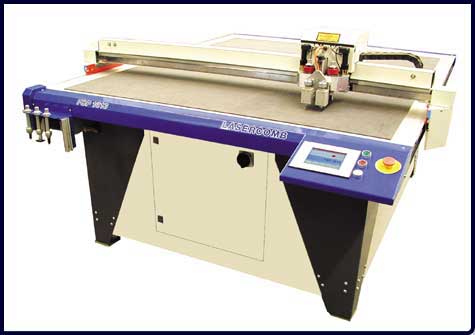

Introducing our New Lasercombe FSP1613 Plotter &
Sample maker
 With
an ever increasing demand on our design team for new and innovative packaging
solutions we have decided to invest in the latest sample making and CAD design
software.
The FSP1613 uses the latest technology to produce samples accurate to within
0.2mm up to a speed in excess of 100M/min. This also allows us to produce small
production runs without the added cost of expensive tooling and setup charges.
We are able to produce samples for immediate despatch in corrugated fibreboard
up to and including triple-wall as well as solidboard,correx and even acetate.
With the addition of a laser pointer we are also able to produce small runs of
high quality printed cartons using pre-printed board. This is the ideal solution
for those companies wishing to produce promotional material for a limited number
of customers.
 If
you feel that our new service may be of benefit to you and your company than please
do not hesitate in contacting us to discuss your needs
|
| |
 |
Corrugated Board contains recycled material and is 100% recyclable |
|
|
| |
|
| |
 |
| |
